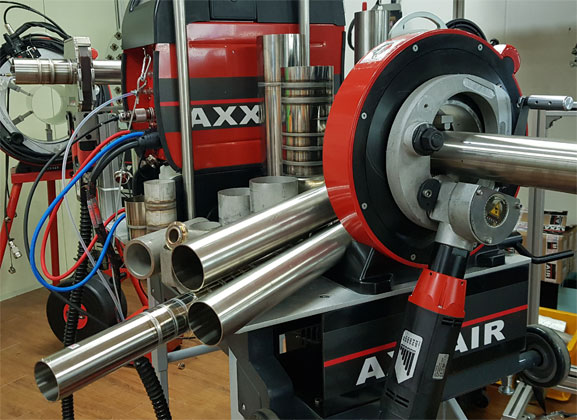

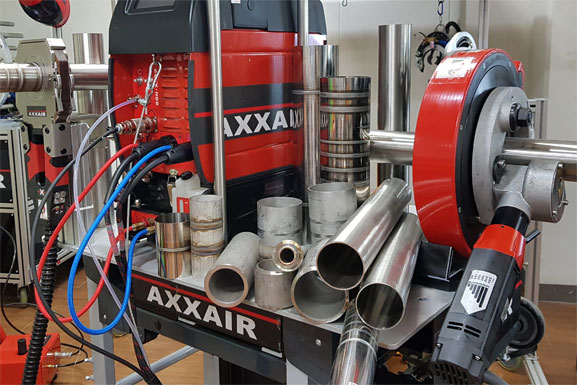

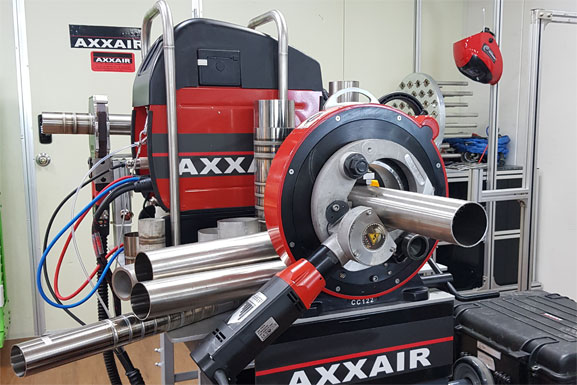

CC 122
  • 121 스몰

    Blade-jaw distance of 2/13.5 mm. Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 4 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard: extends blade life and optimizes cutting quality

  • CC121

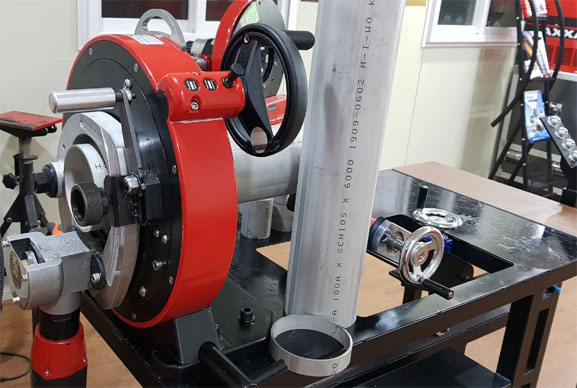

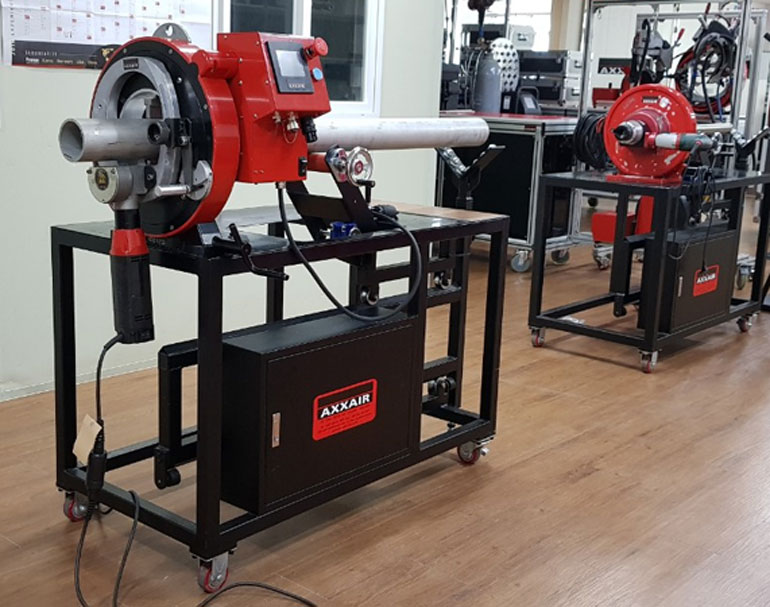

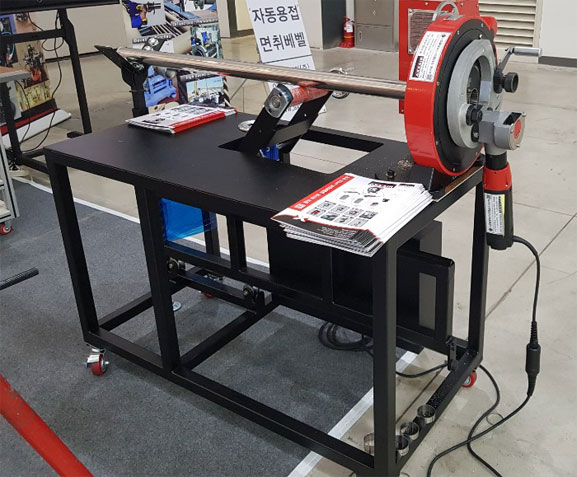

    절단기 & 높이 조절 받침대

121ECO Cutting

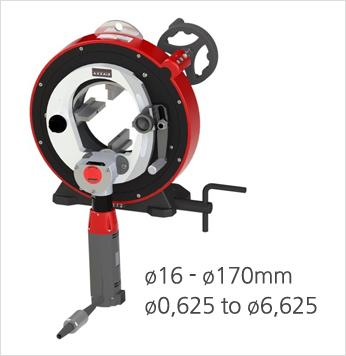

CC 172
171
Technical Specifications
- Basic stainless steel jaws Ø2,75 to Ø6,625(70 to 170 mm )
- Additional jaws Ø0,625 to Ø4,65( 16 to 118mm)
- Cutting precision: perpendicular cutting <0.25 mm
- Scalability: may be transformed into a bevelling and orbital welding machine
- Dual-output cutting motor with 2 blade positions for uptake

Weight : 44 kg (easy handling)

  • 121 스몰

    Blade-jaw distance of 2/13.5 mm. Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 4 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard : extends blade life and optimizes cutting quality

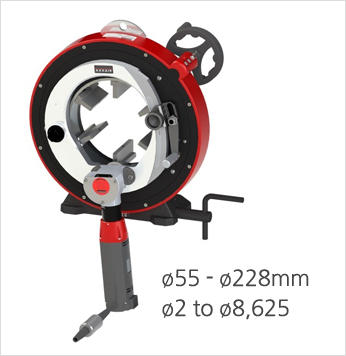

CC 222
121 스몰
Technical Specifications
- Basic stainless steel jaws Ø4,55 to 8,625(Ø116 to Ø225mm)
- Additional jaws Ø2 to Ø6,65(Ø59 to Ø169mm)
- Cutting precision: perpendicular cutting <0.25 mm
- Dual-output cutting motor with 2 blade positions for uptake
- Scalability: may be transformed into a bevelling and orbital welding machine

Weight : 51 kg (easy handling)

  • 121 스몰

    Optimized Blade-jaws distance Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 6 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard: extends blade life and optimizes cutting quality

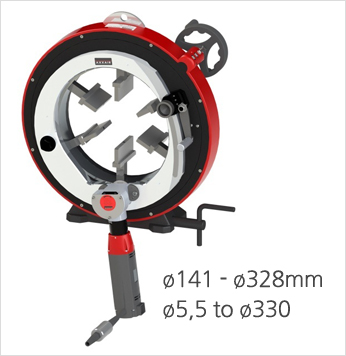

CC 322
121 스몰
Technical Specifications
- Basic stainless steel jaws Ø8,5 to 12,75(Ø216 to Ø330 mm)
- Additional jaws Ø5,5 to Ø10(Ø140 to Ø256mm)
- Cutting precision: perpendicular cuts < 0.25mm
- Dual-output cutting motor with 2 blade positions for uptake
- Scalability: may be transformed into a bevelling and orbital welding machine • Lifting eye

Weight : 73 kg (easy handling)

  • 121 스몰

    Optimized Blade-jaws distance Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard: extends blade life and optimizes cutting quality

321MS18 Cutting
