DC 65
- Technical Specifications
- 버 없이 용접 전 작업을 위한 수직 페이싱 작업
- - 정확한 수동 전진방식(0.1mm)
- - 18V 리튬이온 배터리 장착(전기코드 방식도 가능)
- - 분해없이 빠른 툴 교체가능, 툴홀더 장착으로 베벨링 작업가능
- - 엑서 절단기와 엔드밀로 작업 후 용접 시 용접성능 향상
- - 고품질 엔드밀 작업: 클린배관, 마이크로배관(반도체, 쌔니타리 클린배관)

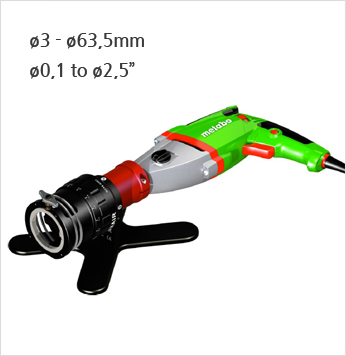

- Burr-free tube squaring machine
- - Accurate manual advance (0.1 mm steps)
- - Light and compact: 7.1 kg with battery
- - 30°and 45°outside bevel possible with optional tool holder.
Jaw opens wide for easy positioning of tube.
QuiXS: Lets you change the head or fit a chuck in just a few seconds.
Tool adjusted to the diameter of tube to be machined in just a few seconds.
DC 65-M
- Technical Specifications

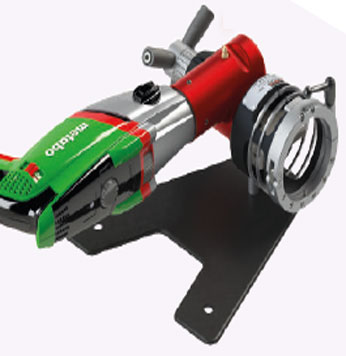

- Burr-free tube squaring machine
- - Accurate manual advance (0.1 mm steps)
- - Quick blade adjustment, no disassembly required
- - Light and compact: 7.1 kg with battery
- - Removable support foot
- - 30°and 45°outside bevel possible with optional tool holder.
- - squaring and bevelling in one operation*
- - Reduction housing in cast aluminium
- Mains motor
- - Motor 1100W.
- - Two speed reducer with thumbwheel speed change.
- - Top quality speed changer.
- - Anti-start protection.
-
Jaw opens wide for easy positioning of tube.
HSS TIALN HIGH QIALITY Reversible blade (two cutting edges)
-
Tool adjusted to the diameter of tube to be machined in just a few seconds.
DC 65 FACING
제원
| Machine Ref | Dimension(mm) | Ext. bevelling | Weight(kg) | Voltage* |
|---|---|---|---|---|
| DC65-G2 | 3-63.5 | Yes | 7.1 | Battery Charger 220 V, 18 VOLTS |
| DCPACK-G | 3-63.5 | Yes | 7.1 | Battery Charger 220 V, 18 VOLTS |
| DC65-Mx | 3-63.5 | Yes | 8.1 | Mains 220V - 110V |
| DCPACK-Mx | 3-63.5 | Yes | 8.1 | Mains 220V - 110V |
